Spiral UPVC Pipes

ADVANTAGES

  • Low Cost – Cost effective when we compare with conventional RCC pipe produced on ASTM standards.
  • Very Fast Delivery of Project.

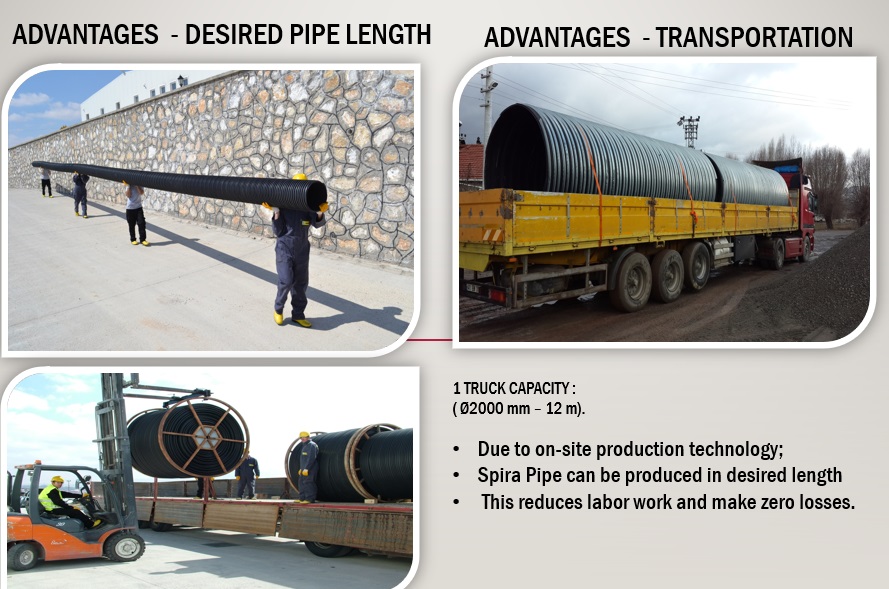

  • Easy transportation.
  • 50 Years Warranty.
  • Can be produced on site.
  • Joint Free – we can produce manhole to manhole.
  • One Machine makes 500 Meters length pipe per day.
  • 100% compliance is ensured on site.
  • Manufacturing Standards PS 5401, IS15328, TS 12132.
  • 15% to 20 % Lower Cost as compared to RCC Pipes.
  • Manning Coefficient is 0.008.

APPLICATIONS

The unique advantages of Spiral Piping technology and the uPVC material properties make it ideal for infrastructure applications such as;

  • Sewage and rainwater applications
  • Drainage applications for highway & motorway constructions
  • Hydroelectric power plant (HEPP) applications
  • Industrial applications.

TECHNICAL PROPERTIES

  • Tensile Modulus: 3-4 GN/m sq
  • Tensile Elongation: 10-50%
  • Elasticity strength: 3-100 MN/M sq.
  • Impact Strength: 3-10 KJ/Kg/degree centigrade.
  • Heating Temperature: 2,15 – 2,16 KJ/KJ/ degree centigrade.
  • Heat deflection temperature: <100 degree centigrade.
  • Thermal Expansion Coefficient: 6×10^5 / degree centigrade.
  • Specific Gravity UPVC: 1.4 – 1.5 Gr/cm cube.
